SKF NUP 206 ECML Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment NUP 206 ECML Transparent And Fair Price On Time Delivery

SKF NUP 206 ECML Bearing Description

We supply various of SKF NUP 206 ECML bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF NUP 206 ECML bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF NUP 206 ECML bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF NUP 206 ECML bearings inquire deeply into the running of the machine and friction phenomenon .SKF NUP 206 ECML bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF NUP 206 ECML bearings will be arranged timely for we have a large stock of SKF NUP 206 ECML bearings in HongKong.

SKF NUP 206 ECML Bearing Specification

Bearing number : NUP 206 ECML

Size (mm) : 30x62x16

Brand : The brand you need

Bore Diameter (mm) : 30

Outer Diameter (mm) : 62

Width (mm) : 16

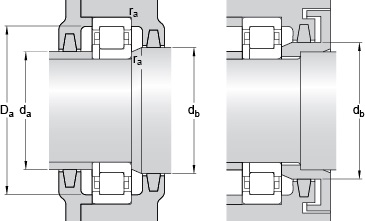

Bearing dimensions and specification in ALIER catalogue:

d – 30 mm

D – 62 mm

B – 16 mm

d₁ – – 41.2 mm

D₁ – – 52.45 mm

F – 37.5 mm

r_1,2 – min. – 1 mm

r_3,4 – min. – 0.6 mm

d_a – min. – 35.3 mm

d_b – min. – 43 mm

D_a – max. – 55.9 mm

r_a – max. – 1 mm

Basic dynamic load rating – C – 44 kN

Basic static load rating – C₀ – 36.5 kN

Fatigue load limit – P_u – 4.5 kN

Reference speed – 13000 r/min

Limiting speed – 14000 r/min

Calculation factor – k_r – 0.23

Mass bearing – 0.237 kg
