SKF C 4910 K30V Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment C 4910 K30V Transparent And Fair Price On Time Delivery

SKF C 4910 K30V Bearing Description

We supply various of SKF C 4910 K30V bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF C 4910 K30V bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF C 4910 K30V bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF C 4910 K30V bearings inquire deeply into the running of the machine and friction phenomenon .SKF C 4910 K30V bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF C 4910 K30V bearings will be arranged timely for we have a large stock of SKF C 4910 K30V bearings in HongKong.

SKF C 4910 K30V Bearing Specification

Bearing number : C 4910 K30V

Size (mm) : 50x72x22

Brand : The brand you need

Bore Diameter (mm) : 50

Outer Diameter (mm) : 72

Width (mm) : 22

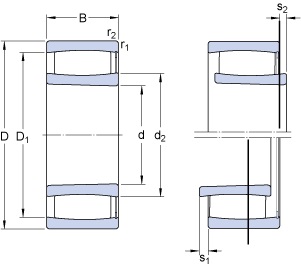

Bearing dimensions and specification in ALIER catalogue:

d – 50 mm

D – 72 mm

B – 22 mm

d₂ – – 56.9 mm

D₁ – – 66.1 mm

s₁ – 4.7 mm

s₂ – 1.7 mm

r_1,2 – min. – 0.6 mm

d_a – min. – 52 mm

d_a – max. – 62 mm

D_a – max. – 68.8 mm

r_a – max. – 0.6 mm

Basic dynamic load rating – C – 86.5 kN

Basic static load rating – C₀ – 125 kN

Fatigue load limit – P_u – 14.6 kN

Limiting speed – 3600 r/min

Factor – k₁ – 0.103

Factor – k₂ – 0.114

Mass bearing – 0.29 kg
