INA ZKLDF100 Bearing

INA Bearing Professional After-sales Guarantee Easy And Secure Payment ZKLDF100 Transparent And Fair Price On Time Delivery

INA ZKLDF100 Bearing Description

We supply various of INA ZKLDF100 bearings. bearings is purity material and high precision , the varieties of INA bearings is up to thousands of species .INA ZKLDF100 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of INA ZKLDF100 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,INA ZKLDF100 bearings inquire deeply into the running of the machine and friction phenomenon .INA ZKLDF100 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of INA ZKLDF100 bearings will be arranged timely for we have a large stock of INA ZKLDF100 bearings in HongKong.

INA ZKLDF100 Bearing Specification

Bearing number : ZKLDF100

Size (mm) : 100x185x38

Brand : The brand you need

Bore Diameter (mm) : 100

Outer Diameter (mm) : 185

Width (mm) : 38

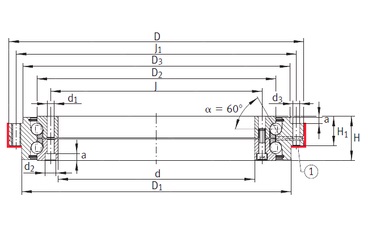

Bearing dimensions and specification in ALIER catalogue:

d – 100 mm

D – 185 mm

H – 38 mm

a – 5,4 mm

d1 – 5,6 mm

d2 – 10 mm

d3 – 5,6 mm

D1 – 161 mm

D2 – 136 mm

D3 – 158 mm

H1 – 25 mm

J – 112 mm

J1 – 170 mm

Weight – 4,5 Kg

Dynamic load rating axial (C) – 71 kN

Static load rating axial (C0) – 265 kN

Limiting speed – 2 800 r/min

Tags :  ALIER , 100x185x38
