SKF YAT204 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment YAT204 Transparent And Fair Price On Time Delivery

SKF YAT204 Bearing Description

We supply various of SKF YAT204 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF YAT204 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF YAT204 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF YAT204 bearings inquire deeply into the running of the machine and friction phenomenon .SKF YAT204 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF YAT204 bearings will be arranged timely for we have a large stock of SKF YAT204 bearings in HongKong.

SKF YAT204 Bearing Specification

Bearing number : YAT204

Size (mm) : 20x47x25.5

Brand : The brand you need

Bore Diameter (mm) : 20

Outer Diameter (mm) : 47

Width (mm) : 25,5

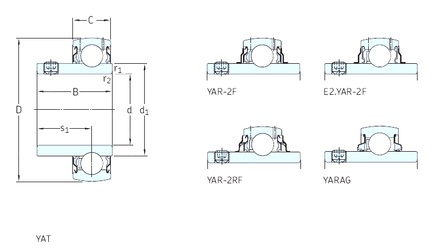

Bearing dimensions and specification in ALIER catalogue:

d – 20 mm

D – 47 mm

B – 25,5 mm

C – 14 mm

d1 – 28,2 mm

r1 min. – 0,6 mm

r2 min. – 0,6 mm

s1 – 18,3 mm

Weight – 0,11 Kg

Basic dynamic load rating (C) – 12,7 kN

Basic static load rating (C0) – 6,55 kN

Fatigue load limit (Pu) – 0,28

Limiting speed – 8500 r/min

Tags :  ALIER , 20x47x25.5
