SKF W635 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment W635 Transparent And Fair Price On Time Delivery

SKF W635 Bearing Description

We supply various of SKF W635 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF W635 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF W635 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF W635 bearings inquire deeply into the running of the machine and friction phenomenon .SKF W635 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF W635 bearings will be arranged timely for we have a large stock of SKF W635 bearings in HongKong.

SKF W635 Bearing Specification

Bearing number : W635

Size (mm) : 5x19x6

Brand : The brand you need

Bore Diameter (mm) : 5

Outer Diameter (mm) : 19

Width (mm) : 6

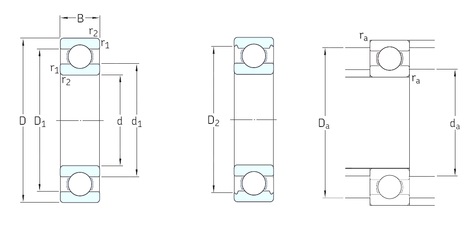

Bearing dimensions and specification in ALIER catalogue:

d – 5 mm

D – 19 mm

B – 6 mm

C – 6 mm

d1 – ?C mm

d2 – 8,5 mm

r1 min. – 0,3 mm

r2 min. – 0,3 mm

D1 – 15,1 mm

D2 – 16,5 mm

da min. – 7 mm

Da max. – 17 mm

ra max. – 0,3 mm

Weight – 0,0075 Kg

Basic dynamic load rating (C) – 2,34 kN

Basic static load rating (C0) – 0,88 kN

Fatigue load limit (Pu) – 0,038

Reference speed – 85000 r/min

Limiting speed – 56000 r/min

Calculation factor (f0) – 12

Calculation factor (kr) – 0,035

Tags :  ALIER , 5x19x6
