SKF W623-2RS1 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment W623-2RS1 Transparent And Fair Price On Time Delivery

SKF W623-2RS1 Bearing Description

We supply various of SKF W623-2RS1 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF W623-2RS1 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF W623-2RS1 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF W623-2RS1 bearings inquire deeply into the running of the machine and friction phenomenon .SKF W623-2RS1 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF W623-2RS1 bearings will be arranged timely for we have a large stock of SKF W623-2RS1 bearings in HongKong.

SKF W623-2RS1 Bearing Specification

Bearing number : W623-2RS1

Size (mm) : 3x10x4

Brand : The brand you need

Bore Diameter (mm) : 3

Outer Diameter (mm) : 10

Width (mm) : 4

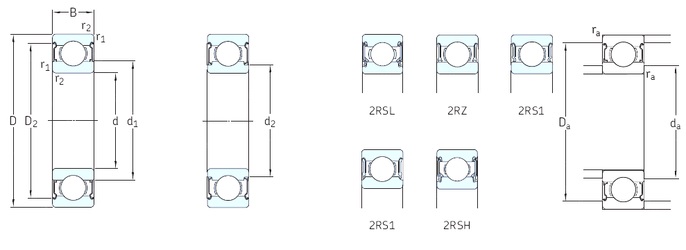

Bearing dimensions and specification in ALIER catalogue:

d – 3 mm

D – 10 mm

B – 4 mm

C – 4 mm

d1 – ?C mm

d2 – 4,3 mm

r1 min. – 4,2 mm

r2 min. – 4,2 mm

D1 – 8 mm

D2 – 0,15 mm

da min. – 4,3 mm

Da max. – 8,8 mm

ra max. – 0,15 mm

Weight – 0,0017 Kg

Basic dynamic load rating (C) – 0,358 kN

Basic static load rating (C0) – 0,11 kN

Fatigue load limit (Pu) – 0,005

Reference speed – ?C r/min

Limiting speed – 40000 r/min

Calculation factor (f0) – 6,3

Calculation factor (kr) – 0,03
