SKF W61700X-2Z Bearing Description

We supply various of SKF W61700X-2Z bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF W61700X-2Z bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF W61700X-2Z bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF W61700X-2Z bearings inquire deeply into the running of the machine and friction phenomenon .SKF W61700X-2Z bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF W61700X-2Z bearings will be arranged timely for we have a large stock of SKF W61700X-2Z bearings in HongKong.

SKF W61700X-2Z Bearing Specification

Bearing number : W61700X-2Z

Size (mm) : 10x15x4

Brand : The brand you need

Bore Diameter (mm) : 10

Outer Diameter (mm) : 15

Width (mm) : 4

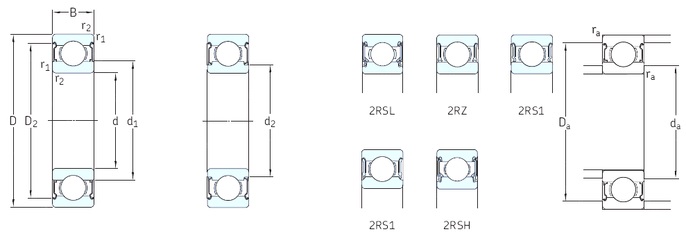

Bearing dimensions and specification in ALIER catalogue:

d – 10 mm

D – 15 mm

B – 4 mm

C – 4 mm

d1 – 11,2 mm

d2 – ?C mm

r1 min. – 11 mm

r2 min. – 11 mm

D1 – 14,1 mm

D2 – 0,15 mm

da min. – 11 mm

Da max. – 14,5 mm

ra max. – 0,15 mm

Weight – 0,0018 Kg

Basic dynamic load rating (C) – 0,488 kN

Basic static load rating (C0) – 0,22 kN

Fatigue load limit (Pu) – 0,009

Reference speed – 85000 r/min

Limiting speed – 43000 r/min

Calculation factor (f0) – 8

Calculation factor (kr) – 0,015
