SKF T2EE240/VB406 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment T2EE240/VB406 Transparent And Fair Price On Time Delivery

SKF T2EE240/VB406 Bearing Description

We supply various of SKF T2EE240/VB406 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF T2EE240/VB406 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF T2EE240/VB406 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF T2EE240/VB406 bearings inquire deeply into the running of the machine and friction phenomenon .SKF T2EE240/VB406 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF T2EE240/VB406 bearings will be arranged timely for we have a large stock of SKF T2EE240/VB406 bearings in HongKong.

SKF T2EE240/VB406 Bearing Specification

Bearing number : T2EE240/VB406

Size (mm) : 240x320x57

Brand : The brand you need

Bore Diameter (mm) : 240

Outer Diameter (mm) : 320

Width (mm) : 57

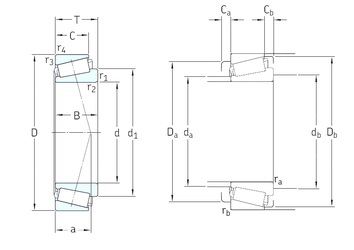

Bearing dimensions and specification in ALIER catalogue:

d – 240 mm

D – 320 mm

T – 57 mm

B – 56 mm

C – 46 mm

a – 58 mm

d1 – 276 mm

r1 min. – 3 mm

r2 min. – 3 mm

r3 min. – 2 mm

r4 min. – 2 mm

Ca min. – 9 mm

Cb min. – 11 mm

da max – 254 mm

Da min – 296 mm

Da max. – 303 mm

db min – 266 mm

Db min. – 311 mm

ra max. – 3 mm

rb max. – 2 mm

Weight – 12,5 Kg

Basic dynamic load rating (C) – 616 kN

Basic static load rating (C0) – 1320 kN

Fatigue load limit (Pu) – 118

Reference speed – 1300 r/min

Limiting speed – 1900 r/min

Calculation factor (e) – 0,35

Calculation factor (Y) – 1,7

Calculation factor (Y0) – 0,9
