SKF SYWR 25 YTHR Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SYWR 25 YTHR Transparent And Fair Price On Time Delivery

SKF SYWR 25 YTHR Bearing Description

We supply various of SKF SYWR 25 YTHR bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SYWR 25 YTHR bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SYWR 25 YTHR bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SYWR 25 YTHR bearings inquire deeply into the running of the machine and friction phenomenon .SKF SYWR 25 YTHR bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SYWR 25 YTHR bearings will be arranged timely for we have a large stock of SKF SYWR 25 YTHR bearings in HongKong.

SKF SYWR 25 YTHR Bearing Specification

Bearing number : SYWR 25 YTHR

Size (mm) : 25x37x25

Brand : The brand you need

Bore Diameter (mm) : 25

Outer Diameter (mm) : 37

Width (mm) : 25

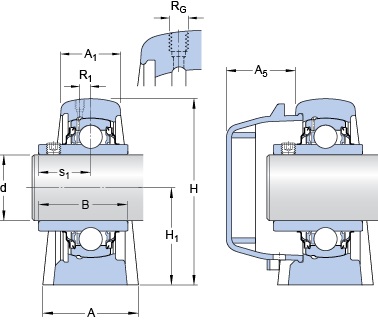

Bearing dimensions and specification in ALIER catalogue:

d – 25 mm

A – 37 mm

A₁ – 25 mm

A₅ – 25.2 mm

B – 34.1 mm

H – 70 mm

H₁ – 36.5 mm

H₂ – 16 mm

J – 102 mm

J – max. – 110 mm

J – min. – 94 mm

L – 133.5 mm

H – 19.5 mm

N₁ – 11.5 mm

s₁ – 19.8 mm

R_G – 1/4-28 UNF

R₁ – 1.5 mm

R_α – 45 °

Basic dynamic load rating – C – 11.9 kN

Basic static load rating – C₀ – 7.8 kN

Fatigue load limit – P_u – 0.335 kN

Limiting speed – 4300 r/min

Weight – 0.871 kg

Hexagonal key size for grub screw – H – 3 mm

Recommended tightening torque for grub screw – 4 N??m
