SKF SYWK 25 YTH Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SYWK 25 YTH Transparent And Fair Price On Time Delivery

SKF SYWK 25 YTH Bearing Description

We supply various of SKF SYWK 25 YTH bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SYWK 25 YTH bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SYWK 25 YTH bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SYWK 25 YTH bearings inquire deeply into the running of the machine and friction phenomenon .SKF SYWK 25 YTH bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SYWK 25 YTH bearings will be arranged timely for we have a large stock of SKF SYWK 25 YTH bearings in HongKong.

SKF SYWK 25 YTH Bearing Specification

Bearing number : SYWK 25 YTH

Size (mm) : 25x32x22

Brand : The brand you need

Bore Diameter (mm) : 25

Outer Diameter (mm) : 32

Width (mm) : 22

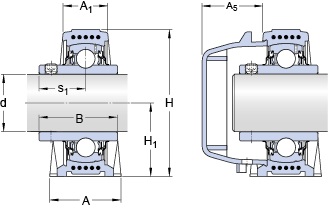

Bearing dimensions and specification in ALIER catalogue:

d – 25 mm

A – 32 mm

A₁ – 22 mm

A₅ – 26.3 mm

B – 34.1 mm

H – 70.5 mm

H₁ – 36.5 mm

H₂ – 16 mm

J – 105 mm

J – max. – 110 mm

J – min. – 100 mm

L – 134 mm

H – 17.5 mm

N₁ – 12.5 mm

s₁ – 19.8 mm

Basic dynamic load rating – C – 11.9 kN

Basic static load rating – C₀ – 7.8 kN

Fatigue load limit – P_u – 0.335 kN

Limiting speed – 4300 r/min

Weight – 0.32 kg

Hexagonal key size for grub screw – H – 3 mm

Recommended tightening torque for grub screw – 4 N??m
