SKF SYR 3 1/2-3 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SYR 3 1/2-3 Transparent And Fair Price On Time Delivery

SKF SYR 3 1/2-3 Bearing Description

We supply various of SKF SYR 3 1/2-3 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SYR 3 1/2-3 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SYR 3 1/2-3 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SYR 3 1/2-3 bearings inquire deeply into the running of the machine and friction phenomenon .SKF SYR 3 1/2-3 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SYR 3 1/2-3 bearings will be arranged timely for we have a large stock of SKF SYR 3 1/2-3 bearings in HongKong.

SKF SYR 3 1/2-3 Bearing Specification

Bearing number : SYR 3 1/2-3

Size (mm) : 88.9×130.175×80.962

Brand : The brand you need

Bore Diameter (mm) : 88,9

Outer Diameter (mm) : 130,175

Width (mm) : 80,962

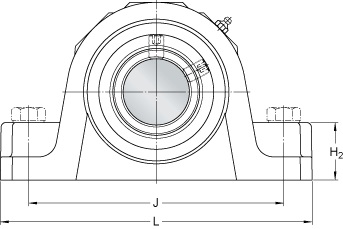

Bearing dimensions and specification in ALIER catalogue:

d_a – 88.9 mm

d₂ – 130.175 mm

A – 80.962 mm

A₁ – 107.156 mm

B – 102.394 mm

H – 192.088 mm

H₁ – 95.25 mm

H₂ – 57.15 mm

L – 330.2 mm

J – max. – 282.575 mm

J – min. – 234.95 mm

s – 36.512 mm

S – 0.794 mm

Basic dynamic load rating – C – 253 kN

Limiting speed – 800 r/min

Mass bearing unit – 14.3 kg
