SKF SYNT 75 FW Bearing Description

We supply various of SKF SYNT 75 FW bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SYNT 75 FW bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SYNT 75 FW bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SYNT 75 FW bearings inquire deeply into the running of the machine and friction phenomenon .SKF SYNT 75 FW bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SYNT 75 FW bearings will be arranged timely for we have a large stock of SKF SYNT 75 FW bearings in HongKong.

SKF SYNT 75 FW Bearing Specification

Bearing number : SYNT 75 FW

Size (mm) : 75x90x71

Brand : The brand you need

Bore Diameter (mm) : 75

Outer Diameter (mm) : 90

Width (mm) : 71

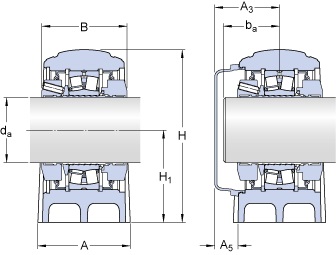

Bearing dimensions and specification in ALIER catalogue:

d_a – 75 mm

A – 90 mm

B – 71 mm

H – 180 mm

H₁ – 95 mm

H₂ – 32 mm

J – 260 mm

L – 320 mm

H – 28 mm

N₁ – 22 mm

J₆ – 292 mm

J₇ – 32.5 mm

N₄ – max. – 8 mm

A₃ – 80 mm

A₅ – 38.5 mm

b_a – min. – 38 mm

b_a – max. – 70 mm

Basic dynamic load rating – C – 212 kN

Basic static load rating – C₀ – 240 kN

Fatigue load limit – P_u – 26.5 kN

Limiting speed – 2500 r/min

Calculation factor – e – 0.22

Calculation factor – Y₁ – 3

Calculation factor – Y₂ – 4.6

Diameter – d_m – 102.5 mm

Basic Designation bearing – 22215 E

P_a – 25 kN

P_0° – 370 kN

P_55° – 415 kN

P_90° – 250 kN

P_120° – 165 kN

P_150° – 150 kN

P_180° – 220 kN

Mass bearing unit – 12 kg

Diameter – G – 20 mm
