SKF SYNT 50 F Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SYNT 50 F Transparent And Fair Price On Time Delivery

SKF SYNT 50 F Bearing Description

We supply various of SKF SYNT 50 F bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SYNT 50 F bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SYNT 50 F bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SYNT 50 F bearings inquire deeply into the running of the machine and friction phenomenon .SKF SYNT 50 F bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SYNT 50 F bearings will be arranged timely for we have a large stock of SKF SYNT 50 F bearings in HongKong.

SKF SYNT 50 F Bearing Specification

Bearing number : SYNT 50 F

Size (mm) : 50x70x65

Brand : The brand you need

Bore Diameter (mm) : 50

Outer Diameter (mm) : 70

Width (mm) : 65

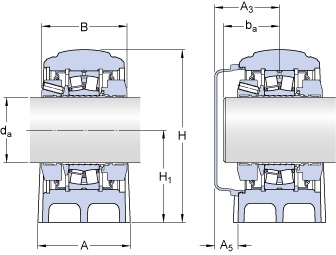

Bearing dimensions and specification in ALIER catalogue:

d_a – 50 mm

A – 70 mm

B – 65 mm

H – 131 mm

H₁ – 70 mm

H₂ – 28 mm

J – 210 mm

L – 255 mm

H – 24 mm

N₁ – 18 mm

J₆ – 234 mm

J₇ – 26 mm

N₄ – max. – 8 mm

A₃ – 62 mm

A₅ – 29.5 mm

b_a – min. – 34 mm

b_a – max. – 55 mm

Basic dynamic load rating – C – 104 kN

Basic static load rating – C₀ – 108 kN

Fatigue load limit – P_u – 11.8 kN

Limiting speed – 3300 r/min

Calculation factor – e – 0.24

Calculation factor – Y₁ – 2.8

Calculation factor – Y₂ – 4.2

Diameter – d_m – 70 mm

Basic Designation bearing – 22210 E

P_a – 15 kN

P_0° – 190 kN

P_55° – 330 kN

P_90° – 200 kN

P_120° – 130 kN

P_150° – 115 kN

P_180° – 140 kN

Mass bearing unit – 5.8 kg

Diameter – G – 16 mm
