SKF SYK 35 TEF Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SYK 35 TEF Transparent And Fair Price On Time Delivery

SKF SYK 35 TEF Bearing Description

We supply various of SKF SYK 35 TEF bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SYK 35 TEF bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SYK 35 TEF bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SYK 35 TEF bearings inquire deeply into the running of the machine and friction phenomenon .SKF SYK 35 TEF bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SYK 35 TEF bearings will be arranged timely for we have a large stock of SKF SYK 35 TEF bearings in HongKong.

SKF SYK 35 TEF Bearing Specification

Bearing number : SYK 35 TEF

Size (mm) : 35x45x27

Brand : The brand you need

Bore Diameter (mm) : 35

Outer Diameter (mm) : 45

Width (mm) : 27

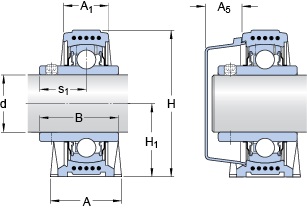

Bearing dimensions and specification in ALIER catalogue:

d – 35 mm

A – 45 mm

A₁ – 27 mm

A₅ – 22 mm

B – 42.9 mm

H – 93.5 mm

H₁ – 47.6 mm

H₂ – 19 mm

J – 126 mm

J – max. – 133 mm

J – min. – 119 mm

L – 164 mm

H – 21.5 mm

N₁ – 14.5 mm

s₁ – 25.4 mm

Basic dynamic load rating – C – 25.5 kN

Basic static load rating – C₀ – 15.3 kN

Fatigue load limit – P_u – 0.655 kN

Limiting speed – 5300 r/min

Weight – 0.68 kg

Hexagonal key size for grub screw – H – 3 mm

Recommended tightening torque for grub screw – 4 N??m

Tags :  ALIER , 35x45x27
