SKF SYFWK 40 LTHR Bearing Description

We supply various of SKF SYFWK 40 LTHR bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SYFWK 40 LTHR bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SYFWK 40 LTHR bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SYFWK 40 LTHR bearings inquire deeply into the running of the machine and friction phenomenon .SKF SYFWK 40 LTHR bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SYFWK 40 LTHR bearings will be arranged timely for we have a large stock of SKF SYFWK 40 LTHR bearings in HongKong.

SKF SYFWK 40 LTHR Bearing Specification

Bearing number : SYFWK 40 LTHR

Size (mm) : 40x48x35

Brand : The brand you need

Bore Diameter (mm) : 40

Outer Diameter (mm) : 48

Width (mm) : 35

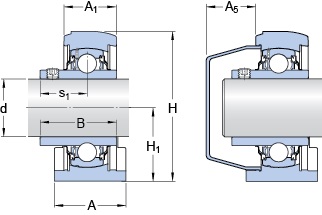

Bearing dimensions and specification in ALIER catalogue:

d – 40 mm

A – 48 mm

A₁ – 35 mm

B – 49.2 mm

H – 100.5 mm

H₁ – 49.2 mm

J – 88.9 mm

L – 120 mm

s₁ – 30.2 mm

Basic dynamic load rating – C – 26 kN

Basic static load rating – C₀ – 19 kN

Fatigue load limit – P_u – 0.8 kN

Limiting speed – 2800 r/min

Calculation factor – f₀ – 14

Weight – 0.92 kg

Size thread – G – M12

Thread length – G₁ – 16 mm

Hexagonal key size for grub screw – H – 4 mm

Recommended tightening torque for grub screw – 6.5 N??m

Housing – SYFWK 508 L

Bearing – YAR 208-2RFGR/HV

End cover – ECL 208
