SKF SYFWK 30 LTA Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SYFWK 30 LTA Transparent And Fair Price On Time Delivery

SKF SYFWK 30 LTA Bearing Description

We supply various of SKF SYFWK 30 LTA bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SYFWK 30 LTA bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SYFWK 30 LTA bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SYFWK 30 LTA bearings inquire deeply into the running of the machine and friction phenomenon .SKF SYFWK 30 LTA bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SYFWK 30 LTA bearings will be arranged timely for we have a large stock of SKF SYFWK 30 LTA bearings in HongKong.

SKF SYFWK 30 LTA Bearing Specification

Bearing number : SYFWK 30 LTA

Size (mm) : 30x43x28

Brand : The brand you need

Bore Diameter (mm) : 30

Outer Diameter (mm) : 43

Width (mm) : 28

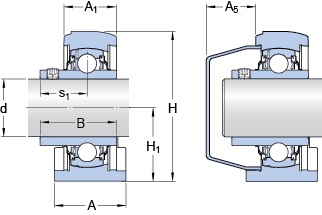

Bearing dimensions and specification in ALIER catalogue:

d – 30 mm

A – 43 mm

A₁ – 28 mm

B – 38.1 mm

H – 84 mm

H₁ – 42.9 mm

J – 76.2 mm

L – 101 mm

s₁ – 22.2 mm

Basic dynamic load rating – C – 19.5 kN

Basic static load rating – C₀ – 11.2 kN

Fatigue load limit – P_u – 0.475 kN

Limiting speed – 3800 r/min

Calculation factor – f₀ – 14

Weight – 0.52 kg

Size thread – G – M10

Thread length – G₁ – 12 mm

Hexagonal key size for grub screw – H – 3 mm

Recommended tightening torque for grub screw – 4 N??m

Housing – SYFWK 506 L

Bearing – YAR 206-2RF/VE495

End cover – ECL 206
