SKF SYFWK 1.7/16 LTHR Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SYFWK 1.7/16 LTHR Transparent And Fair Price On Time Delivery

SKF SYFWK 1.7/16 LTHR Bearing Description

We supply various of SKF SYFWK 1.7/16 LTHR bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SYFWK 1.7/16 LTHR bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SYFWK 1.7/16 LTHR bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SYFWK 1.7/16 LTHR bearings inquire deeply into the running of the machine and friction phenomenon .SKF SYFWK 1.7/16 LTHR bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SYFWK 1.7/16 LTHR bearings will be arranged timely for we have a large stock of SKF SYFWK 1.7/16 LTHR bearings in HongKong.

SKF SYFWK 1.7/16 LTHR Bearing Specification

Bearing number : SYFWK 1.7/16 LTHR

Size (mm) : 36.512x48x32.5

Brand : The brand you need

Bore Diameter (mm) : 36,512

Outer Diameter (mm) : 48

Width (mm) : 32,5

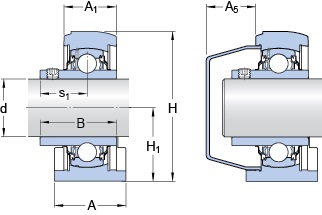

Bearing dimensions and specification in ALIER catalogue:

d – 36.512 mm

A – 48 mm

A₁ – 32.5 mm

B – 42.9 mm

H – 95 mm

H₁ – 47.6 mm

J – 82.6 mm

L – 110 mm

s₁ – 25.4 mm

Basic dynamic load rating – C – 21.6 kN

Basic static load rating – C₀ – 15.3 kN

Fatigue load limit – P_u – 0.655 kN

Limiting speed – 3200 r/min

Calculation factor – f₀ – 14

Weight – 0.7 kg

Size thread – G – M10

Thread length – G₁ – 12 mm

Hexagonal key size for grub screw – H – 3.969 mm

Recommended tightening torque for grub screw – 6.5 N??m

Housing – SYFWK 507 L

Bearing – YAR 207-107-2RFGR/HV

End cover – ECL 207

Tags :  ALIER , 36.512x48x32.5
