SKF SYE 2 7/16 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SYE 2 7/16 Transparent And Fair Price On Time Delivery

SKF SYE 2 7/16 Bearing Description

We supply various of SKF SYE 2 7/16 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SYE 2 7/16 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SYE 2 7/16 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SYE 2 7/16 bearings inquire deeply into the running of the machine and friction phenomenon .SKF SYE 2 7/16 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SYE 2 7/16 bearings will be arranged timely for we have a large stock of SKF SYE 2 7/16 bearings in HongKong.

SKF SYE 2 7/16 Bearing Specification

Bearing number : SYE 2 7/16

Size (mm) : 61.912×101.6×73.025

Brand : The brand you need

Bore Diameter (mm) : 61,912

Outer Diameter (mm) : 101,6

Width (mm) : 73,025

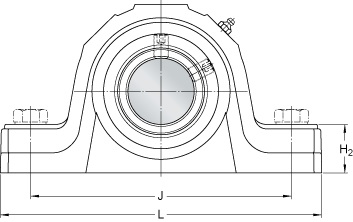

Bearing dimensions and specification in ALIER catalogue:

d_a – 61.912 mm

d₂ – 101.6 mm

A – 73.025 mm

A₁ – 91.281 mm

B – 85.725 mm

H – 144.462 mm

H₁ – 69.85 mm

H₂ – 41.275 mm

L – 266.7 mm

J – max. – 222.25 mm

J – min. – 209.55 mm

s – 31.75 mm

S – 0.794 mm

Basic dynamic load rating – C – 148 kN

Limiting speed – 3100 r/min

Mass bearing unit – 8.39 kg

Tags :  ALIER , 61.912×101.6×73.025
