SKF SY 40 TDW Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SY 40 TDW Transparent And Fair Price On Time Delivery

SKF SY 40 TDW Bearing Description

We supply various of SKF SY 40 TDW bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SY 40 TDW bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SY 40 TDW bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SY 40 TDW bearings inquire deeply into the running of the machine and friction phenomenon .SKF SY 40 TDW bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SY 40 TDW bearings will be arranged timely for we have a large stock of SKF SY 40 TDW bearings in HongKong.

SKF SY 40 TDW Bearing Specification

Bearing number : SY 40 TDW

Size (mm) : 40x48x30

Brand : The brand you need

Bore Diameter (mm) : 40

Outer Diameter (mm) : 48

Width (mm) : 30

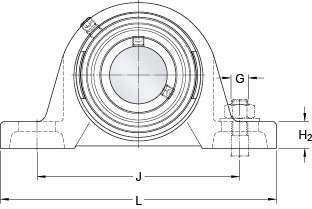

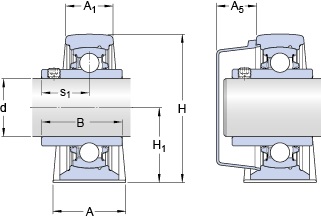

Bearing dimensions and specification in ALIER catalogue:

d – 40 mm

A – 48 mm

A₁ – 30 mm

A₅ – 23.5 mm

B – 49.2 mm

H – 99 mm

H₁ – 49.2 mm

H₂ – 19 mm

J – 135.5 mm

J – max. – 146 mm

J – min. – 125 mm

L – 175 mm

H – 24.5 mm

N₁ – 14 mm

s₁ – 30.2 mm

J₆ – 161 mm

J₇ – 17 mm

N₄ – 4 mm

Basic dynamic load rating – C – 30.7 kN

Basic static load rating – C₀ – 19 kN

Fatigue load limit – P_u – 0.8 kN

Limiting speed – 950 r/min

Weight – 1.8 kg

Hexagonal key size for grub screw – H – 4 mm

Recommended tightening torque for grub screw – 6.5 N??m
