SKF SY 35 TDW Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SY 35 TDW Transparent And Fair Price On Time Delivery

SKF SY 35 TDW Bearing Description

We supply various of SKF SY 35 TDW bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SY 35 TDW bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SY 35 TDW bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SY 35 TDW bearings inquire deeply into the running of the machine and friction phenomenon .SKF SY 35 TDW bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SY 35 TDW bearings will be arranged timely for we have a large stock of SKF SY 35 TDW bearings in HongKong.

SKF SY 35 TDW Bearing Specification

Bearing number : SY 35 TDW

Size (mm) : 35x45x27

Brand : The brand you need

Bore Diameter (mm) : 35

Outer Diameter (mm) : 45

Width (mm) : 27

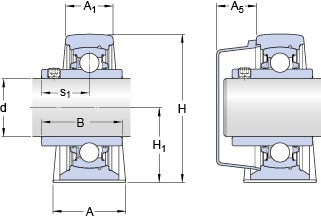

Bearing dimensions and specification in ALIER catalogue:

d – 35 mm

A – 45 mm

A₁ – 27 mm

A₅ – 22 mm

B – 42.9 mm

H – 93 mm

H₁ – 47.6 mm

H₂ – 19 mm

J – 126 mm

J – max. – 133 mm

J – min. – 119 mm

L – 160 mm

H – 21 mm

N₁ – 14 mm

s₁ – 25.4 mm

J₆ – 146 mm

J₇ – 15.5 mm

N₄ – 4 mm

Basic dynamic load rating – C – 25.5 kN

Basic static load rating – C₀ – 15.3 kN

Fatigue load limit – P_u – 0.655 kN

Limiting speed – 1100 r/min

Weight – 1.5 kg

Hexagonal key size for grub screw – H – 3 mm

Recommended tightening torque for grub screw – 4 N??m
