SKF SY 1.1/4 WDW Bearing Description

We supply various of SKF SY 1.1/4 WDW bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SY 1.1/4 WDW bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SY 1.1/4 WDW bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SY 1.1/4 WDW bearings inquire deeply into the running of the machine and friction phenomenon .SKF SY 1.1/4 WDW bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SY 1.1/4 WDW bearings will be arranged timely for we have a large stock of SKF SY 1.1/4 WDW bearings in HongKong.

SKF SY 1.1/4 WDW Bearing Specification

Bearing number : SY 1.1/4 WDW

Size (mm) : 31.75x45x27

Brand : The brand you need

Bore Diameter (mm) : 31,75

Outer Diameter (mm) : 45

Width (mm) : 27

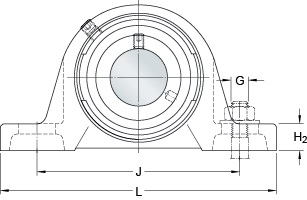

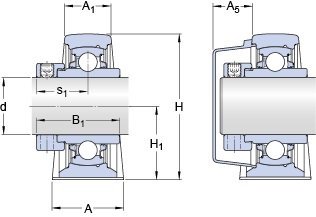

Bearing dimensions and specification in ALIER catalogue:

d – 31.75 mm

A – 45 mm

A₁ – 27 mm

A₅ – 22 mm

B₁ – 51.1 mm

H – 93 mm

H₁ – 47.6 mm

H₂ – 19 mm

J – 126 mm

J – max. – 133 mm

J – min. – 119 mm

L – 160 mm

H – 21 mm

N₁ – 14 mm

s₁ – 32.3 mm

J₆ – 146 mm

J₇ – 15.5 mm

N₄ – 4 mm

Basic dynamic load rating – C – 25.5 kN

Basic static load rating – C₀ – 15.3 kN

Fatigue load limit – P_u – 0.655 kN

Limiting speed – 1100 r/min

Weight – 1.65 kg

Hexagonal key size for grub screw – H – 4.762 mm

Recommended tightening torque for grub screw – 16.5 N??m
