SKF SIR50ES Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SIR50ES Transparent And Fair Price On Time Delivery

SKF SIR50ES Bearing Description

We supply various of SKF SIR50ES bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SIR50ES bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SIR50ES bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SIR50ES bearings inquire deeply into the running of the machine and friction phenomenon .SKF SIR50ES bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SIR50ES bearings will be arranged timely for we have a large stock of SKF SIR50ES bearings in HongKong.

SKF SIR50ES Bearing Specification

Bearing number : SIR50ES

Brand : The brand you need

Bore Diameter (mm) : 50

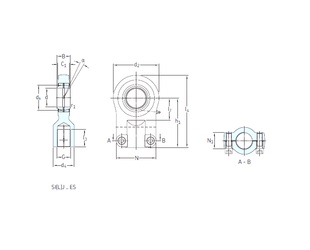

Bearing dimensions and specification in ALIER catalogue:

d – 50 mm

d2 – 118 mm

d4 max. – 62,5 mm

dk – 66 mm

h1 – 105 mm

l3 min. – 46 mm

l4 max. – 164,5 mm

l7 min. – 54 mm

r1 min. – 0,6 mm

B – 35 mm

C1 max – 40,5 mm

N max – 89 mm

N1 max – 40,5 mm

Thread (G) – M45x1,5 Tolerance 6H

Angle – 6 °

Weight – 3,6 Kg

Basic dynamic load rating (C) – 156 kN

Basic static load rating (C0) – 280 kN
