SKF SIQG63ES Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SIQG63ES Transparent And Fair Price On Time Delivery

SKF SIQG63ES Bearing Description

We supply various of SKF SIQG63ES bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SIQG63ES bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SIQG63ES bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SIQG63ES bearings inquire deeply into the running of the machine and friction phenomenon .SKF SIQG63ES bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SIQG63ES bearings will be arranged timely for we have a large stock of SKF SIQG63ES bearings in HongKong.

SKF SIQG63ES Bearing Specification

Bearing number : SIQG63ES

Brand : The brand you need

Bore Diameter (mm) : 63

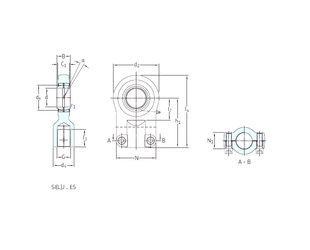

Bearing dimensions and specification in ALIER catalogue:

d – 63 mm

d2 – 134 mm

d4 max. – 70 mm

dk – 83 mm

h1 – 140 mm

l3 min. – 64 mm

l4 max. – 213,5 mm

l7 min. – 61 mm

r1 min. – 1 mm

B – 63 mm

C1 max – 53,5 mm

N max – 116 mm

N1 max – 40 mm

Thread (G) – M48x2 Tolerance 6H

Angle – 4 °

Weight – 6,8 Kg

Basic dynamic load rating (C) – 255 kN

Basic static load rating (C0) – 375 kN
