SKF SIQG12ESA Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SIQG12ESA Transparent And Fair Price On Time Delivery

SKF SIQG12ESA Bearing Description

We supply various of SKF SIQG12ESA bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SIQG12ESA bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SIQG12ESA bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SIQG12ESA bearings inquire deeply into the running of the machine and friction phenomenon .SKF SIQG12ESA bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SIQG12ESA bearings will be arranged timely for we have a large stock of SKF SIQG12ESA bearings in HongKong.

SKF SIQG12ESA Bearing Specification

Bearing number : SIQG12ESA

Brand : The brand you need

Bore Diameter (mm) : 12

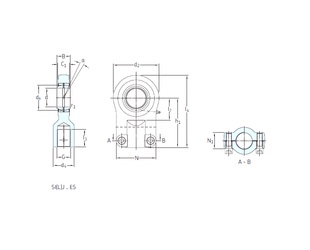

Bearing dimensions and specification in ALIER catalogue:

d – 12 mm

d2 – 33 mm

d4 max. – 17 mm

dk – 18 mm

h1 – 38 mm

l3 min. – 17 mm

l4 max. – 55 mm

l7 min. – 13 mm

r1 min. – 0,3 mm

B – 12 mm

C1 max – 11 mm

N max – 33 mm

N1 max – 11 mm

Thread (G) – M12x1,25 Tolerance 6H

Angle – 4 °

Weight – 0,11 Kg

Basic dynamic load rating (C) – 10,8 kN

Basic static load rating (C0) – 22 kN
