SKF SIQG 200 ES Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SIQG 200 ES Transparent And Fair Price On Time Delivery

SKF SIQG 200 ES Bearing Description

We supply various of SKF SIQG 200 ES bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SIQG 200 ES bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SIQG 200 ES bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SIQG 200 ES bearings inquire deeply into the running of the machine and friction phenomenon .SKF SIQG 200 ES bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SIQG 200 ES bearings will be arranged timely for we have a large stock of SKF SIQG 200 ES bearings in HongKong.

SKF SIQG 200 ES Bearing Specification

Bearing number : SIQG 200 ES

Brand : The brand you need

Bore Diameter (mm) : 200

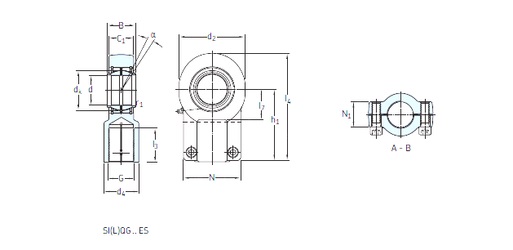

Bearing dimensions and specification in ALIER catalogue:

d – 200 mm

d2 max. – 420 mm

d4 max. – 215 mm

dk – 250 mm

h1 – 390 mm

l3 min. – 161 mm

l4 max. – 623 mm

l7 min. – 193 mm

r1 min. – 1,1 mm

B – 200 mm

C1 max – 165 mm

N max – 323 mm

N1 max – 106 mm

Thread (G) – M 160×4 Tolerance 6H

Angle – 4 °

Weight – 165 Kg

Basic dynamic load rating (C) – 2 120 kN

Basic static load rating (C0) – 3 400 kN
