SKF SILQG32ES Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SILQG32ES Transparent And Fair Price On Time Delivery

SKF SILQG32ES Bearing Description

We supply various of SKF SILQG32ES bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SILQG32ES bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SILQG32ES bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SILQG32ES bearings inquire deeply into the running of the machine and friction phenomenon .SKF SILQG32ES bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SILQG32ES bearings will be arranged timely for we have a large stock of SKF SILQG32ES bearings in HongKong.

SKF SILQG32ES Bearing Specification

Bearing number : SILQG32ES

Brand : The brand you need

Bore Diameter (mm) : 32

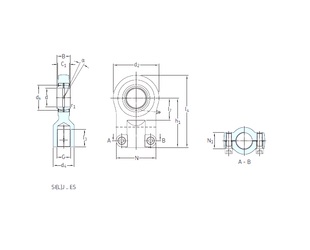

Bearing dimensions and specification in ALIER catalogue:

d – 32 mm

d2 – 71 mm

d4 max. – 38 mm

dk – 43 mm

h1 – 80 mm

l3 min. – 37 mm

l4 max. – 116,5 mm

l7 min. – 31 mm

r1 min. – 0,6 mm

B – 32 mm

C1 max – 28 mm

N max – 67 mm

N1 max – 23 mm

Thread (G) – M27x2 Tolerance 6H

Angle – 4 °

Weight – 1,2 Kg

Basic dynamic load rating (C) – 65,5 kN

Basic static load rating (C0) – 100 kN
