SKF SILQG 100 ES Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SILQG 100 ES Transparent And Fair Price On Time Delivery

SKF SILQG 100 ES Bearing Description

We supply various of SKF SILQG 100 ES bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SILQG 100 ES bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SILQG 100 ES bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SILQG 100 ES bearings inquire deeply into the running of the machine and friction phenomenon .SKF SILQG 100 ES bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SILQG 100 ES bearings will be arranged timely for we have a large stock of SKF SILQG 100 ES bearings in HongKong.

SKF SILQG 100 ES Bearing Specification

Bearing number : SILQG 100 ES

Brand : The brand you need

Bore Diameter (mm) : 100

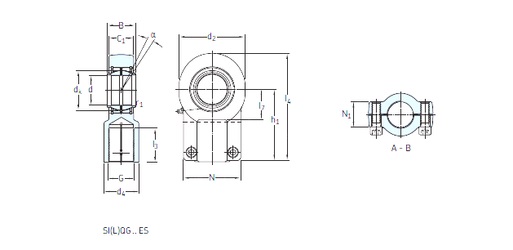

Bearing dimensions and specification in ALIER catalogue:

d – 100 mm

d2 max. – 212 mm

d4 max. – 110 mm

dk – 130 mm

h1 – 210 mm

l3 min. – 96 mm

l4 max. – 324 mm

l7 min. – 97 mm

r1 min. – 1 mm

B – 100 mm

C1 max – 85,5 mm

N max – 180 mm

N1 max – 65 mm

Thread (G) – M 80×3 Tolerance 6H

Angle – 4 °

Weight – 28 Kg

Basic dynamic load rating (C) – 610 kN

Basic static load rating (C0) – 930 kN
