SKF SILJ25ES Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SILJ25ES Transparent And Fair Price On Time Delivery

SKF SILJ25ES Bearing Description

We supply various of SKF SILJ25ES bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SILJ25ES bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SILJ25ES bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SILJ25ES bearings inquire deeply into the running of the machine and friction phenomenon .SKF SILJ25ES bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SILJ25ES bearings will be arranged timely for we have a large stock of SKF SILJ25ES bearings in HongKong.

SKF SILJ25ES Bearing Specification

Bearing number : SILJ25ES

Brand : The brand you need

Bore Diameter (mm) : 25

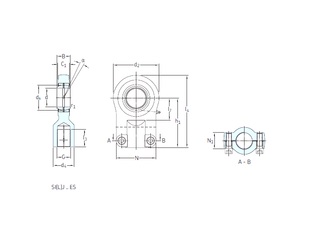

Bearing dimensions and specification in ALIER catalogue:

d – 25 mm

d2 – 65 mm

d4 max. – 30 mm

dk – 35,5 mm

h1 – 68 mm

l3 min. – 23 mm

l4 max. – 100,5 mm

l7 min. – 30 mm

r1 min. – 0,6 mm

B – 20 mm

C1 max – 17 mm

N max – 62 mm

N1 max – 17 mm

Thread (G) – M16x1,5 Tolerance 6H

Angle – 3 °

Weight – 0,68 Kg

Basic dynamic load rating (C) – 48 kN

Basic static load rating (C0) – 73,5 kN
