SKF SIL17C Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SIL17C Transparent And Fair Price On Time Delivery

SKF SIL17C Bearing Description

We supply various of SKF SIL17C bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SIL17C bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SIL17C bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SIL17C bearings inquire deeply into the running of the machine and friction phenomenon .SKF SIL17C bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SIL17C bearings will be arranged timely for we have a large stock of SKF SIL17C bearings in HongKong.

SKF SIL17C Bearing Specification

Bearing number : SIL17C

Brand : The brand you need

Bore Diameter (mm) : 17

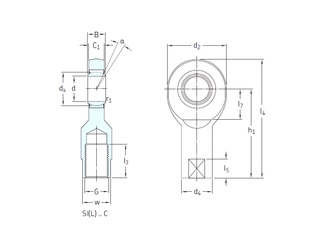

Bearing dimensions and specification in ALIER catalogue:

d – 17 mm

d2 – 47 mm

d3 – 24 mm

d4 – 25 mm

dk – 25 mm

h1 – 67 mm

l4 max. – 92 mm

l5 – 15 mm

l7 min. – 22 mm

r1 min. – 0,3 mm

B – 14 mm

C1 max – 11,5 mm

w – 22 Tolerance h14

Thread (G) – M16 Tolerance 6H

Angle – 10 °

Weight – 0,25 Kg

Basic dynamic load rating (C) – 22,4 kN

Basic static load rating (C0) – 46,5 kN
