SKF SIKB22F Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SIKB22F Transparent And Fair Price On Time Delivery

SKF SIKB22F Bearing Description

We supply various of SKF SIKB22F bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SIKB22F bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SIKB22F bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SIKB22F bearings inquire deeply into the running of the machine and friction phenomenon .SKF SIKB22F bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SIKB22F bearings will be arranged timely for we have a large stock of SKF SIKB22F bearings in HongKong.

SKF SIKB22F Bearing Specification

Bearing number : SIKB22F

Brand : The brand you need

Bore Diameter (mm) : 22

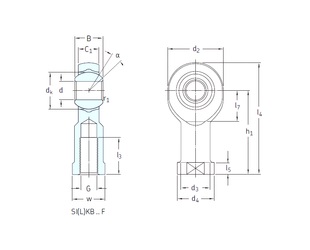

Bearing dimensions and specification in ALIER catalogue:

d – 22 mm

d2 max. – 55 mm

d3 – 30 mm

d4 max. – 40 mm

dk – 38,1 mm

h1 – 84 mm

l3 min. – 33 mm

l4 max. – 114 mm

l5 – 12 mm

l7 min. – 27 mm

r1 min. – 0,3 mm

B – 28 mm

C1 max – 20 mm

w – 32 Tolerance h14

Thread (G) – M22x1,5 Tolerance 6H

Angle – 15 °

Weight – 0,52 Kg

Basic dynamic load rating (C) – 38 kN

Basic static load rating (C0) – 61 kN
