SKF SIKAC30M Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SIKAC30M Transparent And Fair Price On Time Delivery

SKF SIKAC30M Bearing Description

We supply various of SKF SIKAC30M bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SIKAC30M bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SIKAC30M bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SIKAC30M bearings inquire deeply into the running of the machine and friction phenomenon .SKF SIKAC30M bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SIKAC30M bearings will be arranged timely for we have a large stock of SKF SIKAC30M bearings in HongKong.

SKF SIKAC30M Bearing Specification

Bearing number : SIKAC30M

Brand : The brand you need

Bore Diameter (mm) : 30

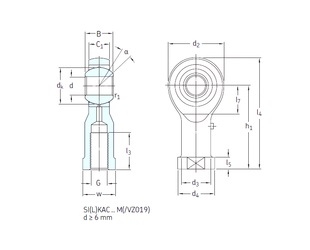

Bearing dimensions and specification in ALIER catalogue:

d – 30 mm

d2 – 71 mm

d3 – 40 mm

d4 max. – 52 mm

dk – 50,8 mm

h1 – 110 mm

l3 min. – 45 mm

l4 max. – 148 mm

l5 – 15 mm

l7 min. – 35 mm

r1 min. – 0,3 mm

B – 37 mm

C1 – 27 mm

w – 41 Tolerance h14

Thread (G) – M30x2 Tolerance 6H

Angle – 17 °

Weight – 1,15 Kg

Basic dynamic load rating (C) – 64 kN

Basic static load rating (C0) – 69,5 kN
