SKF SIKAC18M Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SIKAC18M Transparent And Fair Price On Time Delivery

SKF SIKAC18M Bearing Description

We supply various of SKF SIKAC18M bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SIKAC18M bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SIKAC18M bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SIKAC18M bearings inquire deeply into the running of the machine and friction phenomenon .SKF SIKAC18M bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SIKAC18M bearings will be arranged timely for we have a large stock of SKF SIKAC18M bearings in HongKong.

SKF SIKAC18M Bearing Specification

Bearing number : SIKAC18M

Brand : The brand you need

Bore Diameter (mm) : 18

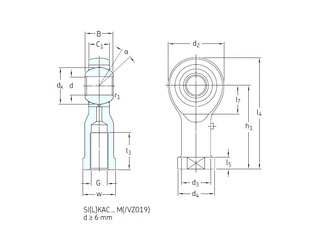

Bearing dimensions and specification in ALIER catalogue:

d – 18 mm

d2 – 47 mm

d3 – 25 mm

d4 max. – 32 mm

dk – 31,7 mm

h1 – 71 mm

l3 min. – 27 mm

l4 max. – 96 mm

l5 – 10 mm

l7 min. – 23 mm

r1 min. – 0,3 mm

B – 23 mm

C1 – 17,5 mm

w – 27 Tolerance h14

Thread (G) – M18x1,5 Tolerance 6H

Angle – 15 °

Weight – 0,3 Kg

Basic dynamic load rating (C) – 26 kN

Basic static load rating (C0) – 35,5 kN
