SKF SI8E Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SI8E Transparent And Fair Price On Time Delivery

SKF SI8E Bearing Description

We supply various of SKF SI8E bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SI8E bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SI8E bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SI8E bearings inquire deeply into the running of the machine and friction phenomenon .SKF SI8E bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SI8E bearings will be arranged timely for we have a large stock of SKF SI8E bearings in HongKong.

SKF SI8E Bearing Specification

Bearing number : SI8E

Brand : The brand you need

Bore Diameter (mm) : 8

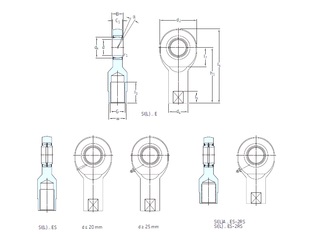

Bearing dimensions and specification in ALIER catalogue:

d – 8 mm

d2 – 25 mm

d4 – 13 mm

dk – 13 mm

h1 – 36 mm

l3 min. – 15 mm

l4 max. – 50 mm

l5 – 9 mm

l7 min. – 11 mm

r1 min. – 0,3 mm

B – 8 mm

C1 max – 6,5 mm

w – 11 Tolerance h14

Thread (G) – M8 Tolerance 6H

Angle – 15 °

Weight – 0,036 Kg

Basic dynamic load rating (C) – 5,5 kN

Basic static load rating (C0) – 12,9 kN
