SKF SI30C Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SI30C Transparent And Fair Price On Time Delivery

SKF SI30C Bearing Description

We supply various of SKF SI30C bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SI30C bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SI30C bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SI30C bearings inquire deeply into the running of the machine and friction phenomenon .SKF SI30C bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SI30C bearings will be arranged timely for we have a large stock of SKF SI30C bearings in HongKong.

SKF SI30C Bearing Specification

Bearing number : SI30C

Brand : The brand you need

Bore Diameter (mm) : 30

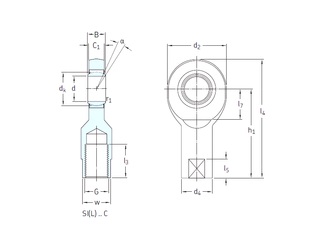

Bearing dimensions and specification in ALIER catalogue:

d – 30 mm

d2 – 75 mm

d3 – 45 mm

d4 – 42 mm

dk – 40,7 mm

h1 – 110 mm

l4 max. – 149 mm

l5 – 19 mm

l7 min. – 34 mm

r1 min. – 0,6 mm

B – 22 mm

C1 max – 20 mm

w – 36 Tolerance h14

Thread (G) – M30x2 Tolerance 6H

Angle – 6 °

Weight – 1,05 Kg

Basic dynamic load rating (C) – 65,5 kN

Basic static load rating (C0) – 118 kN
