SKF SA25C Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SA25C Transparent And Fair Price On Time Delivery

SKF SA25C Bearing Description

We supply various of SKF SA25C bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SA25C bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SA25C bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SA25C bearings inquire deeply into the running of the machine and friction phenomenon .SKF SA25C bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SA25C bearings will be arranged timely for we have a large stock of SKF SA25C bearings in HongKong.

SKF SA25C Bearing Specification

Bearing number : SA25C

Brand : The brand you need

Bore Diameter (mm) : 25

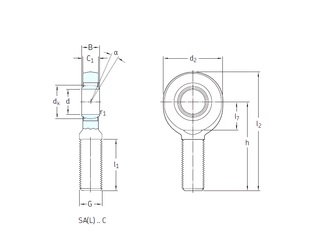

Bearing dimensions and specification in ALIER catalogue:

d – 25 mm

d2 max. – 65 mm

dk – 35,5 mm

h – 94 mm

l1 min. – 53 mm

l2 max. – 128 mm

l7 min. – 30 mm

r1 min. – 0,6 mm

B – 20 mm

C1 max – 18 mm

Thread (G) – M24x2 Tolerance 6g

Angle – 7 °

Weight – 0,57 Kg

Basic dynamic load rating (C) – 51 kN

Basic static load rating (C0) – 78 kN
