SKF SA12C Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment SA12C Transparent And Fair Price On Time Delivery

SKF SA12C Bearing Description

We supply various of SKF SA12C bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF SA12C bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF SA12C bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF SA12C bearings inquire deeply into the running of the machine and friction phenomenon .SKF SA12C bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF SA12C bearings will be arranged timely for we have a large stock of SKF SA12C bearings in HongKong.

SKF SA12C Bearing Specification

Bearing number : SA12C

Brand : The brand you need

Bore Diameter (mm) : 12

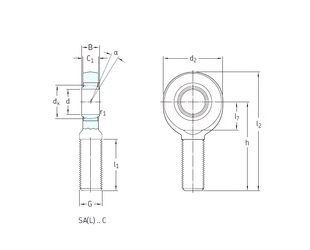

Bearing dimensions and specification in ALIER catalogue:

d – 12 mm

d2 max. – 35 mm

dk – 18 mm

h – 54 mm

l1 min. – 28 mm

l2 max. – 73 mm

l7 min. – 17 mm

r1 min. – 0,3 mm

B – 10 mm

C1 max – 8,5 mm

Thread (G) – M12 Tolerance 6g

Angle – 10 °

Weight – 0,078 Kg

Basic dynamic load rating (C) – 11,4 kN

Basic static load rating (C0) – 24,5 kN
