SKF RNAO45x55x17 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment RNAO45x55x17 Transparent And Fair Price On Time Delivery

SKF RNAO45x55x17 Bearing Description

We supply various of SKF RNAO45x55x17 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF RNAO45x55x17 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF RNAO45x55x17 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF RNAO45x55x17 bearings inquire deeply into the running of the machine and friction phenomenon .SKF RNAO45x55x17 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF RNAO45x55x17 bearings will be arranged timely for we have a large stock of SKF RNAO45x55x17 bearings in HongKong.

SKF RNAO45x55x17 Bearing Specification

Bearing number : RNAO45x55x17

Size (mm) : 45x55x17

Brand : The brand you need

Bore Diameter (mm) : 45

Outer Diameter (mm) : 55

Width (mm) : 17

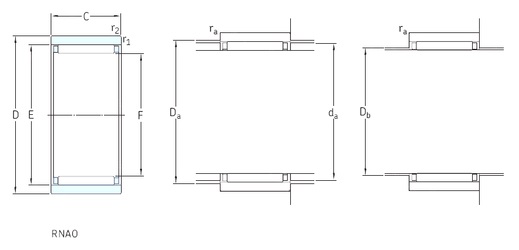

Bearing dimensions and specification in ALIER catalogue:

Fw – 45 mm

D – 55 mm

C – 17 mm

r1 min. – 0,3 mm

r2 min. – 0,3 mm

E – 50 mm

Da – 50,5 mm

ra max. – 0,3 mm

da – 49,2 mm

Db – 45,6 mm

Weight – 0,083 Kg

Basic dynamic load rating (C) – 21,6 kN

Basic static load rating (C0) – 46,5 kN

Fatigue load limit (Pu) – 5,6

Reference speed – 9000 r/min

Limiting speed – 10000 r/min
