SKF RNAO20x32x12 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment RNAO20x32x12 Transparent And Fair Price On Time Delivery

SKF RNAO20x32x12 Bearing Description

We supply various of SKF RNAO20x32x12 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF RNAO20x32x12 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF RNAO20x32x12 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF RNAO20x32x12 bearings inquire deeply into the running of the machine and friction phenomenon .SKF RNAO20x32x12 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF RNAO20x32x12 bearings will be arranged timely for we have a large stock of SKF RNAO20x32x12 bearings in HongKong.

SKF RNAO20x32x12 Bearing Specification

Bearing number : RNAO20x32x12

Size (mm) : 20x32x12

Brand : The brand you need

Bore Diameter (mm) : 20

Outer Diameter (mm) : 32

Width (mm) : 12

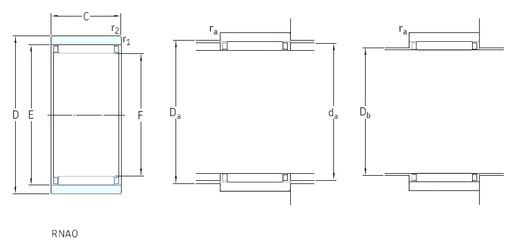

Bearing dimensions and specification in ALIER catalogue:

Fw – 20 mm

D – 32 mm

C – 12 mm

r1 min. – 0,3 mm

r2 min. – 0,3 mm

E – 26 mm

Da – 26,5 mm

ra max. – 0,3 mm

da – 25,6 mm

Db – 20,4 mm

Weight – 0,038 Kg

Basic dynamic load rating (C) – 12,8 kN

Basic static load rating (C0) – 16,3 kN

Fatigue load limit (Pu) – 1,96

Reference speed – 19000 r/min

Limiting speed – 22000 r/min
