SKF RNAO 30x42x16 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment RNAO 30x42x16 Transparent And Fair Price On Time Delivery

SKF RNAO 30x42x16 Bearing Description

We supply various of SKF RNAO 30x42x16 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF RNAO 30x42x16 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF RNAO 30x42x16 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF RNAO 30x42x16 bearings inquire deeply into the running of the machine and friction phenomenon .SKF RNAO 30x42x16 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF RNAO 30x42x16 bearings will be arranged timely for we have a large stock of SKF RNAO 30x42x16 bearings in HongKong.

SKF RNAO 30x42x16 Bearing Specification

Bearing number : RNAO 30x42x16

Size (mm) : 30x42x16

Brand : The brand you need

Bore Diameter (mm) : 30

Outer Diameter (mm) : 42

Width (mm) : 16

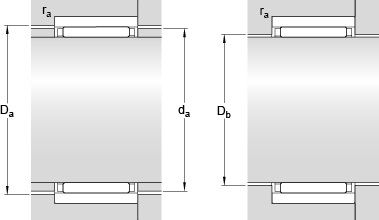

Bearing dimensions and specification in ALIER catalogue:

F_w – 30 mm

D – 42 mm

C – 16 mm

E – 37 mm

r_1,2 – min. – 0.3 mm

d_a – 36.4 mm

D_a – 37.5 mm

D_b – 30.6 mm

r_a – max. – 0.3 mm

Basic dynamic load rating – C – 22 kN

Basic static load rating – C₀ – 33.5 kN

Fatigue load limit – P_u – 4 kN

Reference speed – 13000 r/min

Limiting speed – 15000 r/min

Mass bearing – 0.059 kg
