SKF QJ313MA Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment QJ313MA Transparent And Fair Price On Time Delivery

SKF QJ313MA Bearing Description

We supply various of SKF QJ313MA bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF QJ313MA bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF QJ313MA bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF QJ313MA bearings inquire deeply into the running of the machine and friction phenomenon .SKF QJ313MA bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF QJ313MA bearings will be arranged timely for we have a large stock of SKF QJ313MA bearings in HongKong.

SKF QJ313MA Bearing Specification

Bearing number : QJ313MA

Size (mm) : 65x140x33

Brand : The brand you need

Bore Diameter (mm) : 65

Outer Diameter (mm) : 140

Width (mm) : 33

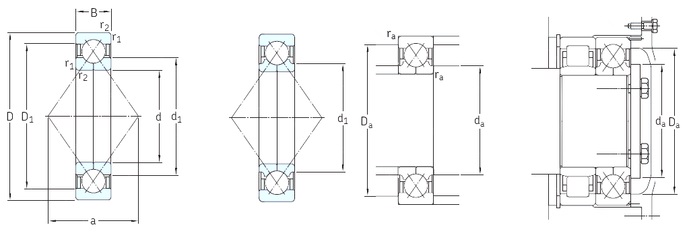

Bearing dimensions and specification in ALIER catalogue:

d – 65 mm

D – 140 mm

B – 33 mm

C – 33 mm

a – 72 mm

d1 – 82,5 mm

r1 min. – 2,1 mm

r2 min. – 2,1 mm

D1 – 115 mm

da min. – 77 mm

Da max. – 128 mm

ra max. – 2 mm

Weight – 2,7 Kg

Basic dynamic load rating (C) – 176 kN

Basic static load rating (C0) – 156 kN

Fatigue load limit (Pu) – 6,55

Reference speed – 6300 r/min

Limiting speed – 8500 r/min
