SKF QJ218N2MA Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment QJ218N2MA Transparent And Fair Price On Time Delivery

SKF QJ218N2MA Bearing Description

We supply various of SKF QJ218N2MA bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF QJ218N2MA bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF QJ218N2MA bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF QJ218N2MA bearings inquire deeply into the running of the machine and friction phenomenon .SKF QJ218N2MA bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF QJ218N2MA bearings will be arranged timely for we have a large stock of SKF QJ218N2MA bearings in HongKong.

SKF QJ218N2MA Bearing Specification

Bearing number : QJ218N2MA

Size (mm) : 90x160x30

Brand : The brand you need

Bore Diameter (mm) : 90

Outer Diameter (mm) : 160

Width (mm) : 30

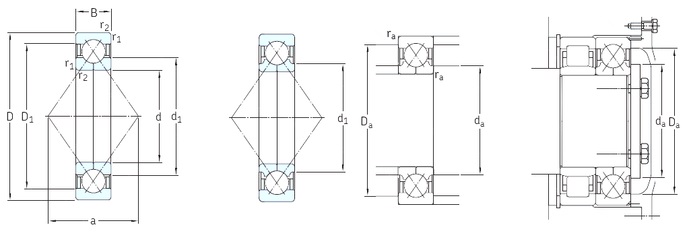

Bearing dimensions and specification in ALIER catalogue:

d – 90 mm

D – 160 mm

B – 30 mm

C – 30 mm

a – 88 mm

d1 – 114 mm

r1 min. – 2 mm

r2 min. – 2 mm

D1 – 136 mm

da min. – 101 mm

Da max. – 149 mm

ra max. – 2 mm

Weight – 2,75 Kg

Basic dynamic load rating (C) – 186 kN

Basic static load rating (C0) – 200 kN

Fatigue load limit (Pu) – 7,65

Reference speed – 5000 r/min

Limiting speed – 7000 r/min
