SKF QJ215MA Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment QJ215MA Transparent And Fair Price On Time Delivery

SKF QJ215MA Bearing Description

We supply various of SKF QJ215MA bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF QJ215MA bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF QJ215MA bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF QJ215MA bearings inquire deeply into the running of the machine and friction phenomenon .SKF QJ215MA bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF QJ215MA bearings will be arranged timely for we have a large stock of SKF QJ215MA bearings in HongKong.

SKF QJ215MA Bearing Specification

Bearing number : QJ215MA

Size (mm) : 75x130x25

Brand : The brand you need

Bore Diameter (mm) : 75

Outer Diameter (mm) : 130

Width (mm) : 25

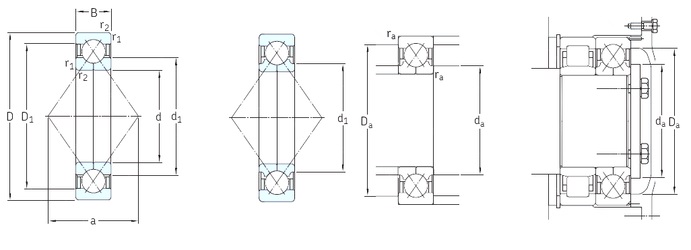

Bearing dimensions and specification in ALIER catalogue:

d – 75 mm

D – 130 mm

B – 25 mm

C – 25 mm

a – 72 mm

d1 – 88,5 mm

r1 min. – 1,5 mm

r2 min. – 1,5 mm

D1 – 112 mm

da min. – 84 mm

Da max. – 121 mm

ra max. – 1,5 mm

Weight – 1,45 Kg

Basic dynamic load rating (C) – 125 kN

Basic static load rating (C0) – 132 kN

Fatigue load limit (Pu) – 5,6

Reference speed – 6300 r/min

Limiting speed – 8500 r/min
