SKF QJ211MA Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment QJ211MA Transparent And Fair Price On Time Delivery

SKF QJ211MA Bearing Description

We supply various of SKF QJ211MA bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF QJ211MA bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF QJ211MA bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF QJ211MA bearings inquire deeply into the running of the machine and friction phenomenon .SKF QJ211MA bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF QJ211MA bearings will be arranged timely for we have a large stock of SKF QJ211MA bearings in HongKong.

SKF QJ211MA Bearing Specification

Bearing number : QJ211MA

Size (mm) : 55x100x21

Brand : The brand you need

Bore Diameter (mm) : 55

Outer Diameter (mm) : 100

Width (mm) : 21

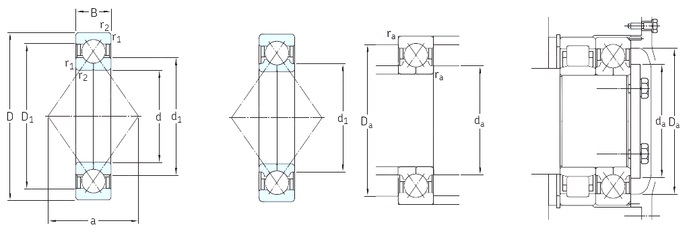

Bearing dimensions and specification in ALIER catalogue:

d – 55 mm

D – 100 mm

B – 21 mm

C – 21 mm

a – 54 mm

d1 – 66 mm

r1 min. – 1,5 mm

r2 min. – 1,5 mm

D1 – 84,7 mm

da min. – 64 mm

Da max. – 91 mm

ra max. – 1,5 mm

Weight – 0,77 Kg

Basic dynamic load rating (C) – 85 kN

Basic static load rating (C0) – 83 kN

Fatigue load limit (Pu) – 3,55

Reference speed – 8000 r/min

Limiting speed – 11000 r/min
