SKF QJ 212 N2PHAS Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment QJ 212 N2PHAS Transparent And Fair Price On Time Delivery

SKF QJ 212 N2PHAS Bearing Description

We supply various of SKF QJ 212 N2PHAS bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF QJ 212 N2PHAS bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF QJ 212 N2PHAS bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF QJ 212 N2PHAS bearings inquire deeply into the running of the machine and friction phenomenon .SKF QJ 212 N2PHAS bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF QJ 212 N2PHAS bearings will be arranged timely for we have a large stock of SKF QJ 212 N2PHAS bearings in HongKong.

SKF QJ 212 N2PHAS Bearing Specification

Bearing number : QJ 212 N2PHAS

Size (mm) : 60x110x22

Brand : The brand you need

Bore Diameter (mm) : 60

Outer Diameter (mm) : 110

Width (mm) : 22

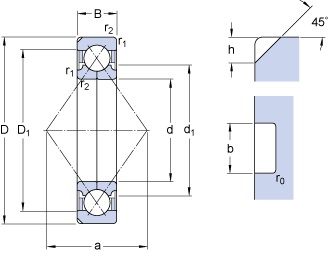

Bearing dimensions and specification in ALIER catalogue:

d – 60 mm

D – 110 mm

B – 22 mm

d₁ – – 72 mm

D₁ – – 93 mm

a – 60 mm

h – 5 mm

b – 6.5 mm

r₀ – 0.5 mm

r_1,2 – min. – 1.5 mm

d_a – min. – 69 mm

D_a – max. – 101 mm

r_a – max. – 1.5 mm

Basic dynamic load rating – C – 96.5 kN

Basic static load rating – C₀ – 93 kN

Fatigue load limit – P_u – 4 kN

Reference speed – 8500 r/min

Limiting speed – 10000 r/min

Calculation factor – k_a – 1

Calculation factor – e – 0.95

Calculation factor – X – 0.6

Calculation factor – Y₀ – 0.58

Calculation factor – Y₁ – 0.66

Calculation factor – Y₂ – 1.07

Mass bearing – 0.99 kg
