SKF QJ 1076 N2MA Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment QJ 1076 N2MA Transparent And Fair Price On Time Delivery

SKF QJ 1076 N2MA Bearing Description

We supply various of SKF QJ 1076 N2MA bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF QJ 1076 N2MA bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF QJ 1076 N2MA bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF QJ 1076 N2MA bearings inquire deeply into the running of the machine and friction phenomenon .SKF QJ 1076 N2MA bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF QJ 1076 N2MA bearings will be arranged timely for we have a large stock of SKF QJ 1076 N2MA bearings in HongKong.

SKF QJ 1076 N2MA Bearing Specification

Bearing number : QJ 1076 N2MA

Size (mm) : 380x560x82

Brand : The brand you need

Bore Diameter (mm) : 380

Outer Diameter (mm) : 560

Width (mm) : 82

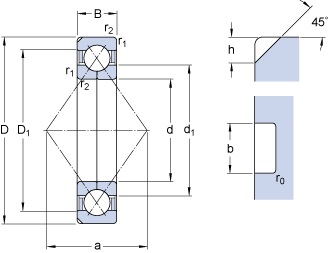

Bearing dimensions and specification in ALIER catalogue:

d – 380 mm

D – 560 mm

B – 82 mm

d₁ – – 443 mm

D₁ – – 497 mm

a – 329 mm

h – 12.5 mm

b – 15 mm

r₀ – 2.5 mm

r_1,2 – min. – 5 mm

d_a – min. – 402 mm

D_a – max. – 538 mm

r_a – max. – 4 mm

Basic dynamic load rating – C – 819 kN

Basic static load rating – C₀ – 1900 kN

Fatigue load limit – P_u – 37.5 kN

Reference speed – 1000 r/min

Limiting speed – 1700 r/min

Calculation factor – k_a – 0.8

Calculation factor – e – 0.95

Calculation factor – X – 0.6

Calculation factor – Y₀ – 0.58

Calculation factor – Y₁ – 0.66

Calculation factor – Y₂ – 1.07

Mass bearing – 73.5 kg
