SKF NUP 313 ECJ Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment NUP 313 ECJ Transparent And Fair Price On Time Delivery

SKF NUP 313 ECJ Bearing Description

We supply various of SKF NUP 313 ECJ bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF NUP 313 ECJ bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF NUP 313 ECJ bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF NUP 313 ECJ bearings inquire deeply into the running of the machine and friction phenomenon .SKF NUP 313 ECJ bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF NUP 313 ECJ bearings will be arranged timely for we have a large stock of SKF NUP 313 ECJ bearings in HongKong.

SKF NUP 313 ECJ Bearing Specification

Bearing number : NUP 313 ECJ

Size (mm) : 65x140x33

Brand : The brand you need

Bore Diameter (mm) : 65

Outer Diameter (mm) : 140

Width (mm) : 33

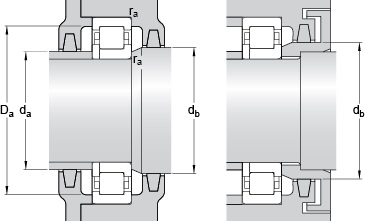

Bearing dimensions and specification in ALIER catalogue:

d – 65 mm

D – 140 mm

B – 33 mm

d₁ – – 90.5 mm

D₁ – – 117.4 mm

F – 82.5 mm

r_1,2 – min. – 2.1 mm

r_3,4 – min. – 2.1 mm

d_a – min. – 77 mm

d_b – min. – 93 mm

D_a – max. – 127.8 mm

r_a – max. – 2 mm

Basic dynamic load rating – C – 212 kN

Basic static load rating – C₀ – 196 kN

Fatigue load limit – P_u – 25.5 kN

Reference speed – 5300 r/min

Limiting speed – 6000 r/min

Calculation factor – k_r – 0.15

Mass bearing – 2.3 kg
