SKF NUP 2215 ECJ Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment NUP 2215 ECJ Transparent And Fair Price On Time Delivery

SKF NUP 2215 ECJ Bearing Description

We supply various of SKF NUP 2215 ECJ bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF NUP 2215 ECJ bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF NUP 2215 ECJ bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF NUP 2215 ECJ bearings inquire deeply into the running of the machine and friction phenomenon .SKF NUP 2215 ECJ bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF NUP 2215 ECJ bearings will be arranged timely for we have a large stock of SKF NUP 2215 ECJ bearings in HongKong.

SKF NUP 2215 ECJ Bearing Specification

Bearing number : NUP 2215 ECJ

Size (mm) : 75x130x31

Brand : The brand you need

Bore Diameter (mm) : 75

Outer Diameter (mm) : 130

Width (mm) : 31

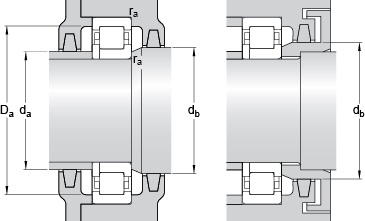

Bearing dimensions and specification in ALIER catalogue:

d – 75 mm

D – 130 mm

B – 31 mm

d₁ – – 94.3 mm

D₁ – – 113.2 mm

F – 88.5 mm

r_1,2 – min. – 1.5 mm

r_3,4 – min. – 1.5 mm

d_a – min. – 84 mm

d_b – min. – 97 mm

D_a – max. – 121.5 mm

r_a – max. – 1.5 mm

Basic dynamic load rating – C – 186 kN

Basic static load rating – C₀ – 208 kN

Fatigue load limit – P_u – 27 kN

Reference speed – 5600 r/min

Limiting speed – 6000 r/min

Calculation factor – k_r – 0.2

Mass bearing – 1.7 kg
