SKF NUP 2208 ECJ Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment NUP 2208 ECJ Transparent And Fair Price On Time Delivery

SKF NUP 2208 ECJ Bearing Description

We supply various of SKF NUP 2208 ECJ bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF NUP 2208 ECJ bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF NUP 2208 ECJ bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF NUP 2208 ECJ bearings inquire deeply into the running of the machine and friction phenomenon .SKF NUP 2208 ECJ bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF NUP 2208 ECJ bearings will be arranged timely for we have a large stock of SKF NUP 2208 ECJ bearings in HongKong.

SKF NUP 2208 ECJ Bearing Specification

Bearing number : NUP 2208 ECJ

Size (mm) : 40x80x23

Brand : The brand you need

Bore Diameter (mm) : 40

Outer Diameter (mm) : 80

Width (mm) : 23

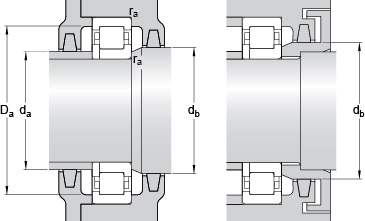

Bearing dimensions and specification in ALIER catalogue:

d – 40 mm

D – 80 mm

B – 23 mm

d₁ – – 54 mm

D₁ – – 67.4 mm

F – 49.5 mm

r_1,2 – min. – 1.1 mm

r_3,4 – min. – 1.1 mm

d_a – min. – 47 mm

d_b – min. – 56 mm

D_a – max. – 72.8 mm

r_a – max. – 1 mm

Basic dynamic load rating – C – 81.5 kN

Basic static load rating – C₀ – 75 kN

Fatigue load limit – P_u – 9.6 kN

Reference speed – 9500 r/min

Limiting speed – 11000 r/min

Calculation factor – k_r – 0.2

Mass bearing – 0.52 kg
