SKF NUP 19/670 ECMA Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment NUP 19/670 ECMA Transparent And Fair Price On Time Delivery

SKF NUP 19/670 ECMA Bearing Description

We supply various of SKF NUP 19/670 ECMA bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF NUP 19/670 ECMA bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF NUP 19/670 ECMA bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF NUP 19/670 ECMA bearings inquire deeply into the running of the machine and friction phenomenon .SKF NUP 19/670 ECMA bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF NUP 19/670 ECMA bearings will be arranged timely for we have a large stock of SKF NUP 19/670 ECMA bearings in HongKong.

SKF NUP 19/670 ECMA Bearing Specification

Bearing number : NUP 19/670 ECMA

Size (mm) : 670x820x103

Brand : The brand you need

Bore Diameter (mm) : 670

Outer Diameter (mm) : 820

Width (mm) : 103

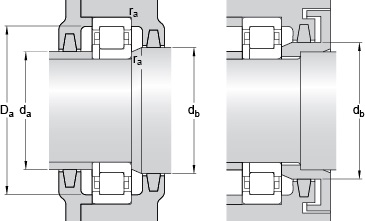

Bearing dimensions and specification in ALIER catalogue:

d – 670 mm

D – 820 mm

B – 103 mm

d₁ – – 750 mm

D₁ – – 824 mm

F – 728 mm

r_1,2 – min. – 6 mm

d_a – min. – 693 mm

d_b – min. – 755 mm

D_a – max. – 877 mm

r_a – max. – 5 mm

Basic dynamic load rating – C – 2330 kN

Basic static load rating – C₀ – 4750 kN

Fatigue load limit – P_u – 325 kN

Reference speed – 630 r/min

Limiting speed – 850 r/min

Calculation factor – k_r – 0.07

Mass bearing – 195 kg
