SKF NUKR 62 A Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment NUKR 62 A Transparent And Fair Price On Time Delivery

SKF NUKR 62 A Bearing Description

We supply various of SKF NUKR 62 A bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF NUKR 62 A bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF NUKR 62 A bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF NUKR 62 A bearings inquire deeply into the running of the machine and friction phenomenon .SKF NUKR 62 A bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF NUKR 62 A bearings will be arranged timely for we have a large stock of SKF NUKR 62 A bearings in HongKong.

SKF NUKR 62 A Bearing Specification

Bearing number : NUKR 62 A

Size (mm) : 24x62x80

Brand : The brand you need

Bore Diameter (mm) : 24

Outer Diameter (mm) : 62

Width (mm) : 80

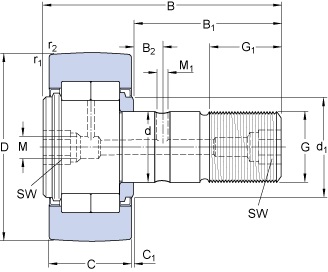

Bearing dimensions and specification in ALIER catalogue:

D – 62 mm

d – 24 mm

B – 80 mm

C – 28 mm

B₁ – 49.5 mm

B₂ – 11 mm

C₁ – 1.3 mm

d₁ – 38 mm

G – M 24×1.5

G₁ – 25 mm

M – 8 mm

M₁ – 4 mm

SW – 14 mm

r_1,2 – min. – 1 mm

Basic dynamic load rating – C – 41.3 kN

Basic static load rating – C₀ – 48 kN

Fatigue load limit – P_u – 5.8 kN

Maximum dynamic radial loads – F_r – 25 kN

Maximum static radial loads – F_0r – 36 kN

Limiting speed – 2600 r/min

Mass support roller – 0.795 kg

Recommended tighthening torque – 220 N??m

Grease fitting – NIP A3x9.5

Hexagonal nut – M 24×1.5

Lubrication adapter – AP 14
